AppleScript - Toggle Microphone and Video on FaceTime

Scripting Forums AppleScript | Mac OS X
#1

Hi,
I’m trying to toggle FaceTime Microphone with AppleScript. But for some reason it won’t click am I doing it wrong?

tell application "System Events"
tell application process "Control Center"
	click menu bar item "FaceTime" of menu bar 1
	if exists (checkbox "Microphone" of window 1) then
		click checkbox "Microphone" of window 1
		perform action 1
		delay 1
	end if
end tell
key code 53 -- # escape key
end tell

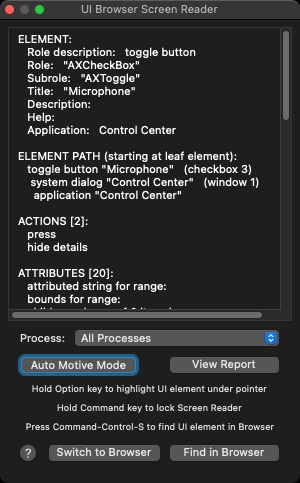

Here’s a screenshot from UI Browser.

Screen Shot 2023-01-26 at 11.32.51 PM

#2

I’m confused!

What and where is application “Control Center”?

EDIT

Found it. I don’t see a FaceTime setting anywhere in Control Center

EDIT

and what does toggling the button supposed to do. Change the input or mute or something else?

#3

Control Center is at the top right of the menu bar.
The green FaceTime icon will show up when you start a video call.
Toggling the button changes the Mute status.

#4

Here is the working script

tell application "System Events"
	tell application process "Control Center"
		if exists menu bar item "FaceTime" of menu bar 1 then
			click menu bar item "FaceTime" of menu bar 1
			repeat until exists scroll area 1 of window 1
				delay 0.2 -- give window time to load all items & redraw
			end repeat
			if exists (checkbox "Microphone" of window 1) then
				click checkbox "Microphone" of window 1
				delay 1
			end if
			key code 53 -- # escape key
		end if
	end tell
	beep
end tell
1 Like
#5

This works !! Thanks.

For anyone wanting to toggle both Video and Microphone on a FaceTime call

tell application "System Events"
tell application process "Control Center"
	if exists menu bar item "FaceTime" of menu bar 1 then
		click menu bar item "FaceTime" of menu bar 1
		repeat until exists scroll area 1 of window 1
			delay 0.2 -- give window time to load all items & redraw
		end repeat
		if exists (checkbox "Microphone" of window 1) then
			click checkbox "Microphone" of window 1
			delay 1
		end if
		if exists (checkbox "Facetime Video Call" of window 1) then
			click checkbox "Facetime Video Call" of window 1
			delay 1
		end if
		key code 53 -- # escape key
	end if
end tell
beep
end tell
#6

Would it be possible for this to work on macOS 13.2.1

#7

Here is a version for Ventura- 13.2.x

use AppleScript version "2.4" -- Yosemite (10.10) or later
use scripting additions

tell application "System Events"
	tell application process "Control Center"
		set fMenu to menu bar item 1 of menu bar 1 whose description is "FaceTime"
		if exists fMenu then
			click fMenu --whose Label is "FaceTime")
			repeat until exists group 1 of window 1
				delay 0.2 -- give window time to load all items & redraw
			end repeat
			if exists (checkbox 3 of group 1 of window 1) then
				click checkbox 3 of group 1 of window 1
				delay 0.5
			end if
			if exists (checkbox 4 of group 1 of window 1) then
				click checkbox 4 of group 1 of window 1
				delay 0.5
			end if
			key code 53 -- # escape key
		end if
	end tell
	beep
end tell

and here is a version that will find the buttons by attribute name (in-case the indexes change)

tell application "System Events"
	tell application process "Control Center"
		set fMenu to menu bar item 1 of menu bar 1 whose description is "FaceTime"
		if exists fMenu then
			click fMenu --whose Label is "FaceTime")
			repeat until exists group 1 of window 1
				delay 0.2 -- give window time to load all items & redraw
			end repeat
			set cc to count checkboxes of group 1 of window 1
			set i to cc
			repeat with i from cc to 1 by -1
				if value of attribute "AXIdentifier" of checkbox i of group 1 of window 1 is "facetime-audio-input-device-toggle" then
					click checkbox i of group 1 of window 1
					delay 0.5
					exit repeat
				end if
			end repeat
			set i to cc
			repeat with i from cc to 1 by -1
				if value of attribute "AXIdentifier" of checkbox i of group 1 of window 1 is "facetime-video-device-toggle" then
					click checkbox i of group 1 of window 1
					delay 0.5
					exit repeat
				end if
			end repeat
			key code 53 -- # escape key
		end if
	end tell
	beep
end tell

OH Wait, an even more cleaned-up version:

use AppleScript version "2.4" -- Yosemite (10.10) or later
use scripting additions

tell application "System Events"
	tell application process "Control Center"
		set fMenu to menu bar item 1 of menu bar 1 whose description is "FaceTime"
		if exists fMenu then
			click fMenu --whose Label is "FaceTime")
			repeat until exists group 1 of window 1
				delay 0.2 -- give window time to load all items & redraw
			end repeat
			set myButtons to checkboxes of group 1 of window 1 whose name of attributes contains "AXIdentifier"
			repeat with aButton in myButtons
				if (value of attribute "AXIdentifier" of aButton) is in {"facetime-audio-input-device-toggle", "facetime-video-device-toggle"} then
					click aButton
					delay 0.5
				end if
			end repeat
			key code 53 -- # escape key
		end if
	end tell
	beep
end tell
1 Like
#8

This works, thanks for the update :pray:

#9

How do i find all the “AXIdentifier”

If i change the button label to “close” this script wouldn’t work. This is for end call.

use AppleScript version "2.4" -- Yosemite (10.10) or later
use scripting additions

tell application "System Events"
tell application process "Control Center"
	set fMenu to menu bar item 1 of menu bar 1 whose description is "FaceTime"
	if exists fMenu then
		click fMenu --whose Label is "FaceTime")
		repeat until exists group 1 of window 1
			delay 0.2 -- give window time to load all items & redraw
		end repeat
		set myButtons to checkboxes of group 1 of window 1 whose name of attributes contains "AXIdentifier"
		repeat with aButton in myButtons
			if (value of attribute "AXIdentifier" of aButton) is in {"close"} then
				click aButton
				delay 0.5
			end if
		end repeat
		key code 53 -- # escape key
	end if
end tell
beep
end tell
#10

@robertfern, the above script no longer works in macOS Sonoma 14.3.1. If you are using the latest could you please update the script. Thanks
